Formation of SyPly HEXA plywood grades
1st grade, 1/2 grade
There is the difference between grades of plywood and grades of veneer. Grades of plywood are made up of veneer grades which are used for covering. For example, plywood covered on the front side with grade B veneer and on the back side with BB veneer will have grade B/BB - the first indicates the highest grade.
View pictures of plywood by gradeLong grain direction on outer veneer sheets:
2440x1220, 2500x1250
Cross grain direction on outer veneer sheets:
1220х2440, 1250х2500
Cut-to-size:
Size on demand
6.0, 9.0, 12.0, 12.5, 15.0, 18.0, 19.0, 20.0, 21.0, 24.0, 27.0, 30.0, 32.0, 35.0
WBP (increased water resistance)
5-10%
SHIPBUILDING
TRANSPORT ENGINEERING

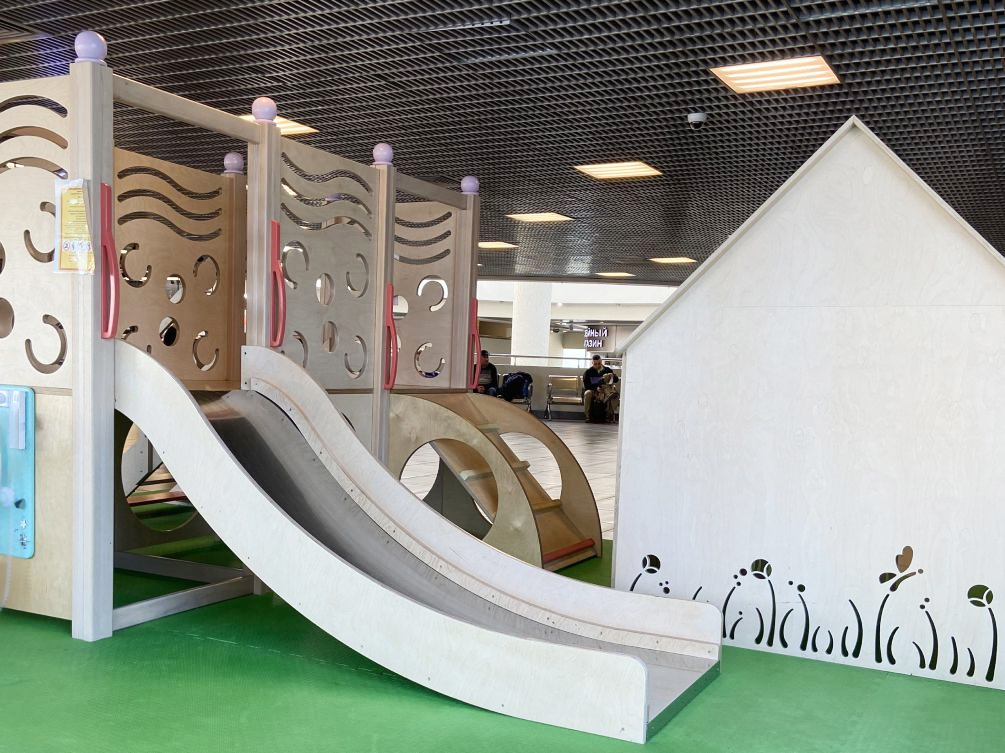

PLAYGROUND EQUIPMENT
| SIZE, mm |
Long grain direction: 2440x1220, 2500x1250 Cross grain direction: 1220х2440, 1250х2500 Size on demand |
| Cut-to-size is possible | |
| Additional options: cutting of tongue and groove or half and lap | |
| Grades | 1st grade, 1/2 grade |
| THICKNESS, mm | 6.0 | 9.0 | 12.0 | 12.5 | 15.0 | 18.0 | 19.0 | 20.0 | 21.0 | 24.0 | 27.0 | 30.0 | 32.0 | 35.0 |
| Film density | 120, 220 |
| Film color | Dark brown, Black, Grey, Color on demand |
| Surface | Texture HEXA |
| Class of formaldehyde emission | Fact E0,5 (Standard E1) |
| Glue type / Water resistance | WBP (increased water resistance) |
| Humidity | 5-10% |
