SyPly COMBI TWIN
Light plywood WBP Unique product made and offered only by Syktyvkar Plywood Mill. High-quality plywood with combination of birch and aspen veneers in the inner layers. It can be used in building, furniture production where weight reduction is needed.
Advantages:
lighter weight of plywood sheets (one sheet weighs at least 8% less than 100% birch plywood)
easy processing and cutting
strong bonding
high performance technical properties
Grades
SyPly COMBI TWIN
Formation of SyPly COMBI TWIN plywood grades
C
There is the difference between grades of plywood and grades of veneer. Grades of plywood are made up of veneer grades which are used for covering. For example, plywood covered on the front side with grade B veneer and on the back side with BB veneer will have grade B/BB - the first indicates the highest grade.

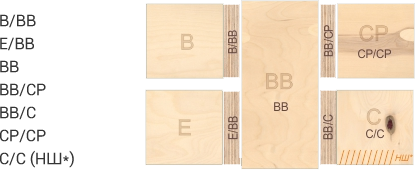

View pictures of plywood by grade
Sizes
SyPly COMBI TWIN
Long grain direction on outer veneer sheets:
2440x1220 , 2500x1250
Cross grain direction on outer veneer sheets:
1220х2440 , 1250х2500
Cut-to-size:
Thickness, mm
SyPly COMBI TWIN
12.0 , 15.0 , 18.0 , 21.0 , 24.0 , 27.0 , 30.0 , 35.0
Number of layers, pcs.
Coating
SyPly COMBI TWIN
Surface
sanded
Glue type / Water resistance
WBP (increased water resistance)
Application
SyPly COMBI TWIN
SIZE, mm
Long grain direction:
2440x1220 , 2500x1250
Cross grain direction:
1220х2440 , 1250х2500
Size on demand
Cut-to-size is possible
Additional options: cutting of tongue and groove or half and lap
Grades
C
THICKNESS, mm
12.0 | 15.0 | 18.0 | 21.0 | 24.0 | 27.0 | 30.0 | 35.0
Surface
sanded
Class of formaldehyde emission
Fact E0,5 (Standard E1)
Glue type / Water resistance
WBP (increased water resistance)
Humidity
5-9 %
